Chair X

People have different sitting reasons and habits, most chairs are designed for people to sit in a certain position while people are more likely to sit in their own way. Discomfort and back pain could be cased if sit “incorrectly”.

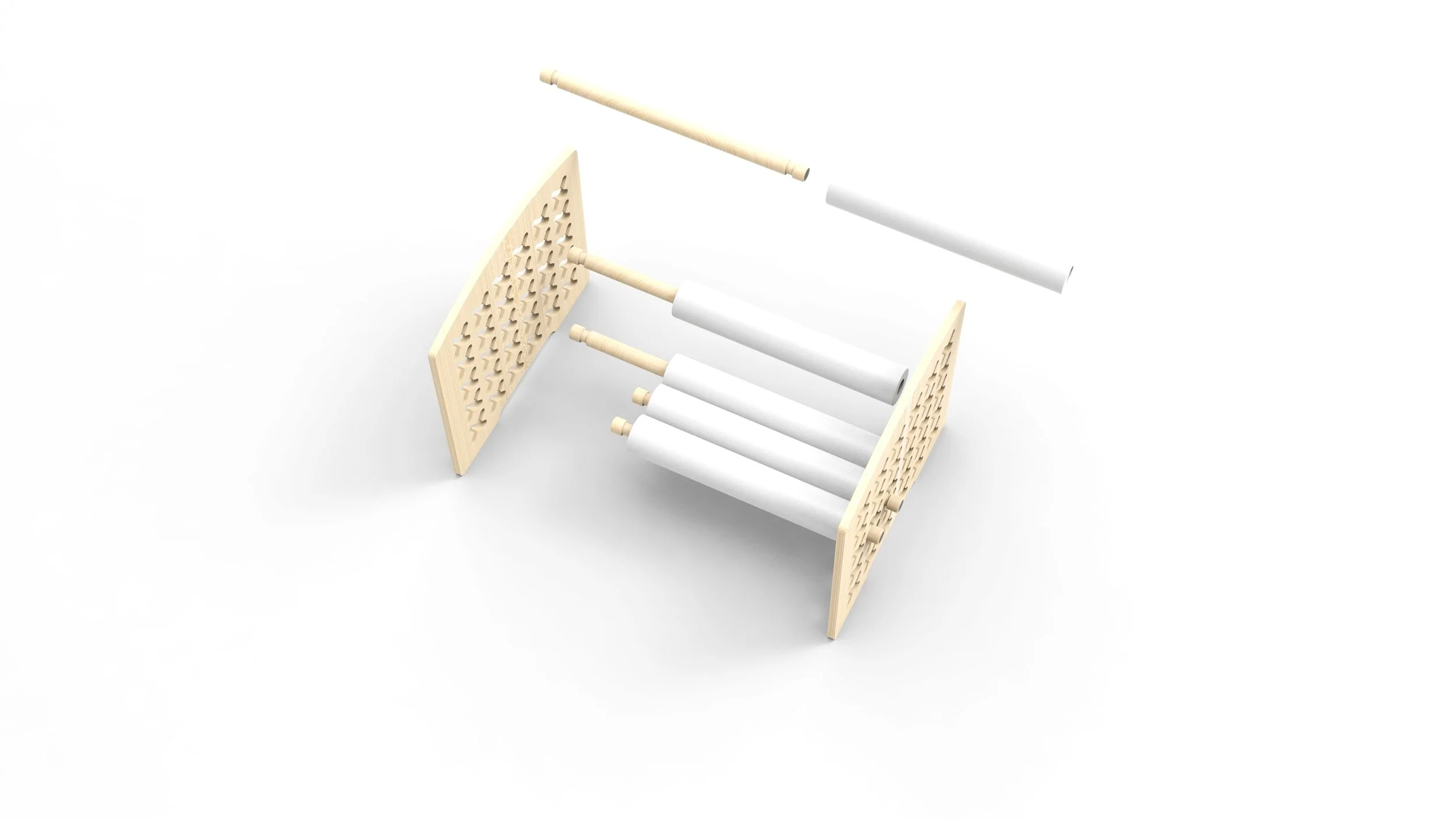

This chair is designed with modular components that can be easily moved and rearranged to accommodate various sitting habits and needs. Its versatility allows it to be assembled in a wide range of configurations to suit the user's preferences.

SolidWorks, 3D Printing, Laser Cut, CNC

2022

"You can't teach people how to sit."

Problem Statement

Many chairs are tailored for specific sitting postures, yet people often have their preferred ways of sitting, potentially causing discomfort and pain.

How can I design a chair that accommodates a variety of sitting positions and habits, enabling users to discover a comfortable and supportive seating arrangement?

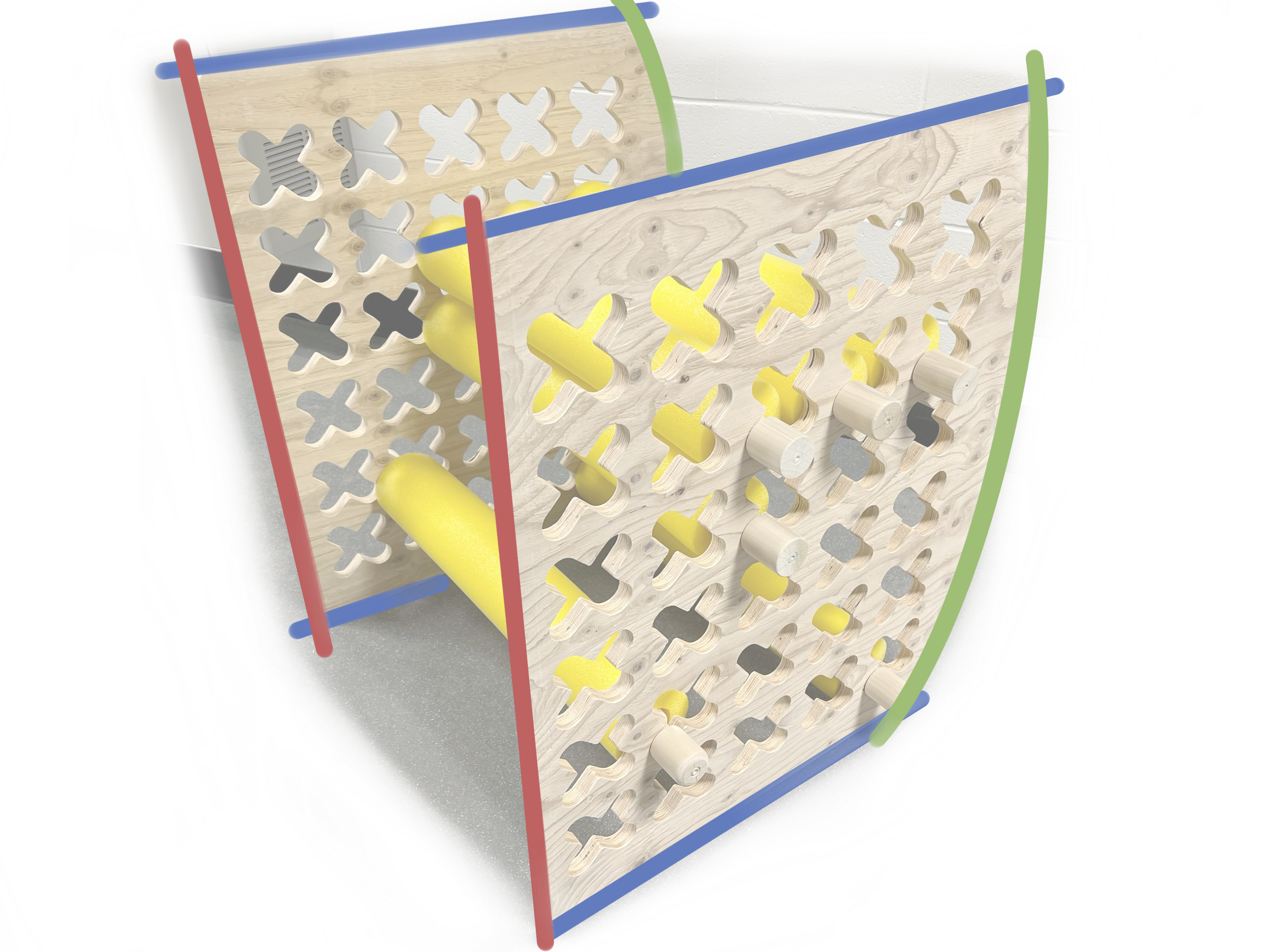

Distinctly colored lines indicate various sitting orientation options. Blue and Red represent different sitting heights, while Green illustrates the rocking chair feature. The X shapes, highlighted in purple, ensure secure locking of the poles in all orientations.

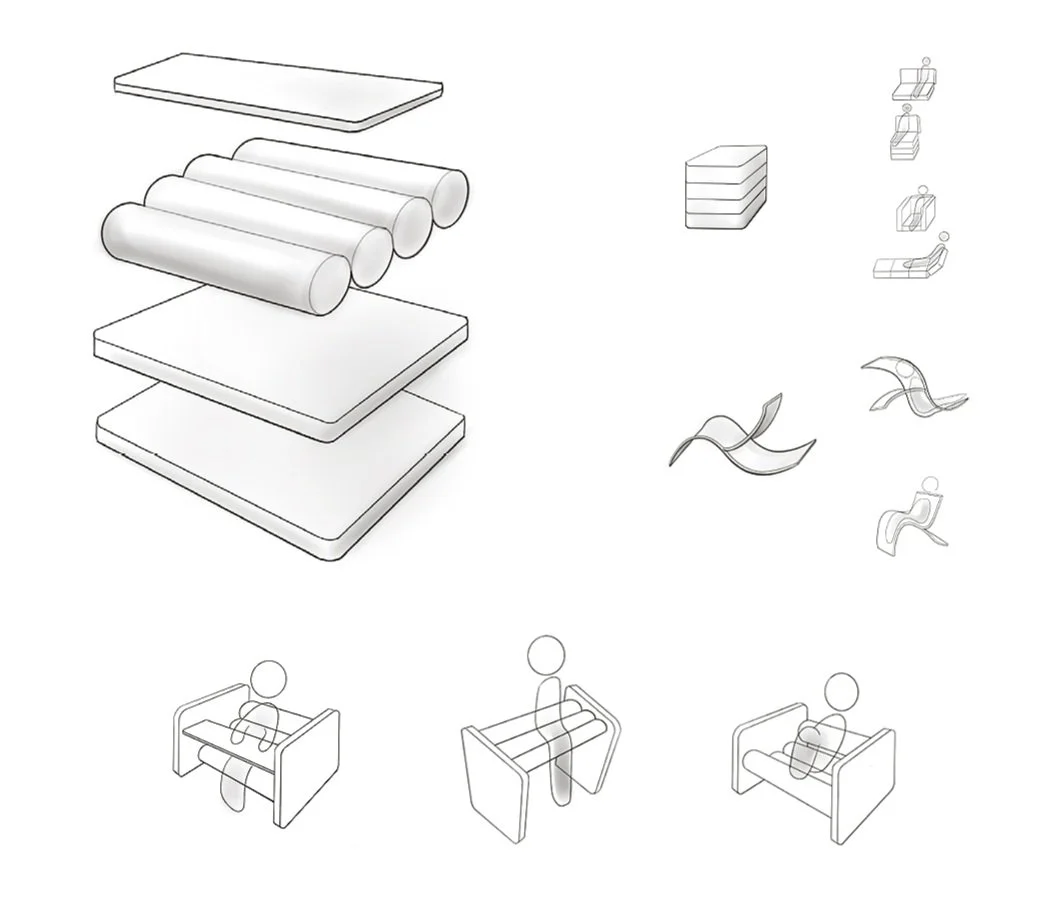

-The panel's design provides versatility, which allowing users to sit in various positions such as a regular chair, rocking chair, or taller stool.

-The X shape enables users to orient the panel in different directions, securely locking the poles inside.

-The removable cushion enhances the overall sitting experience, adding comfort.

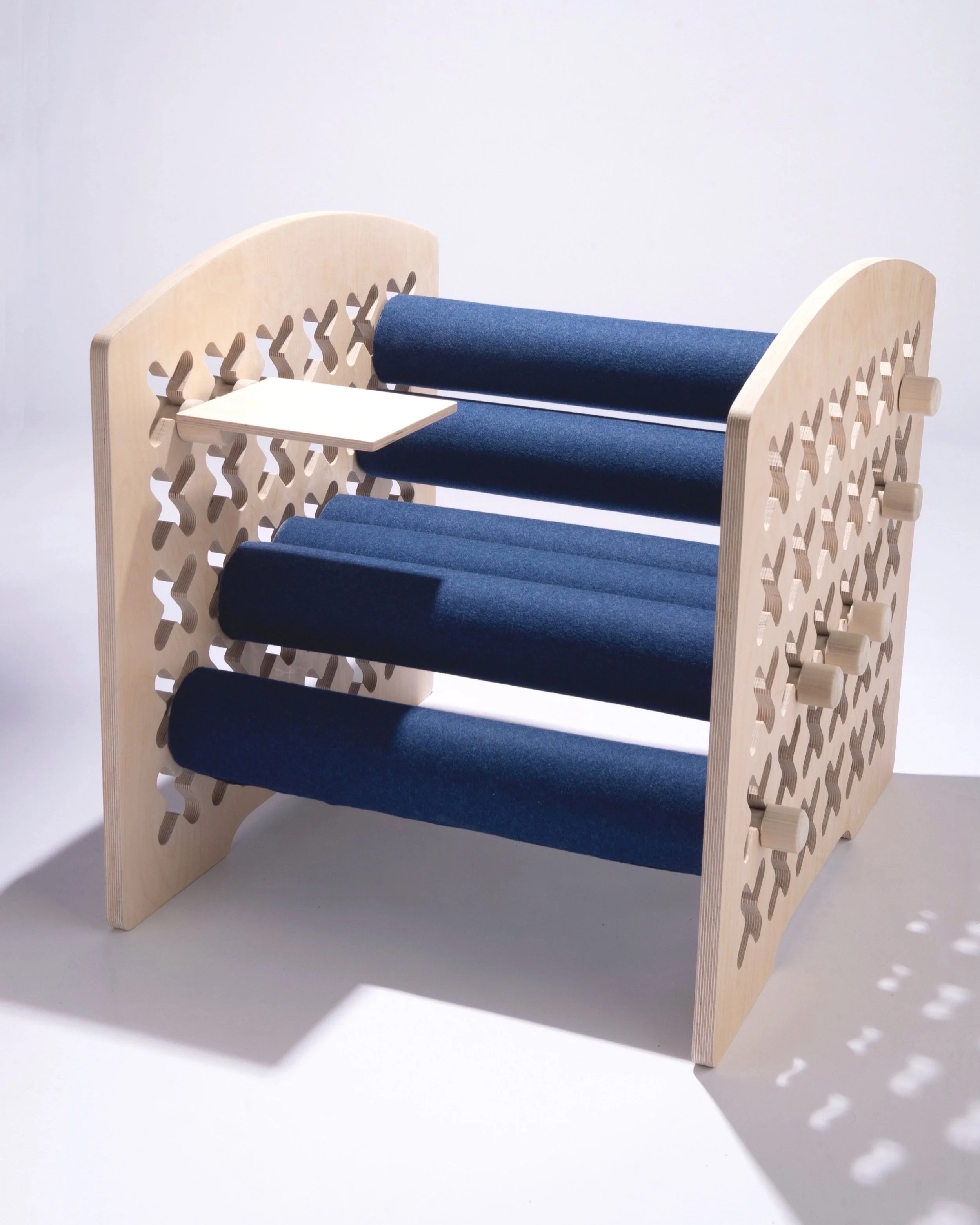

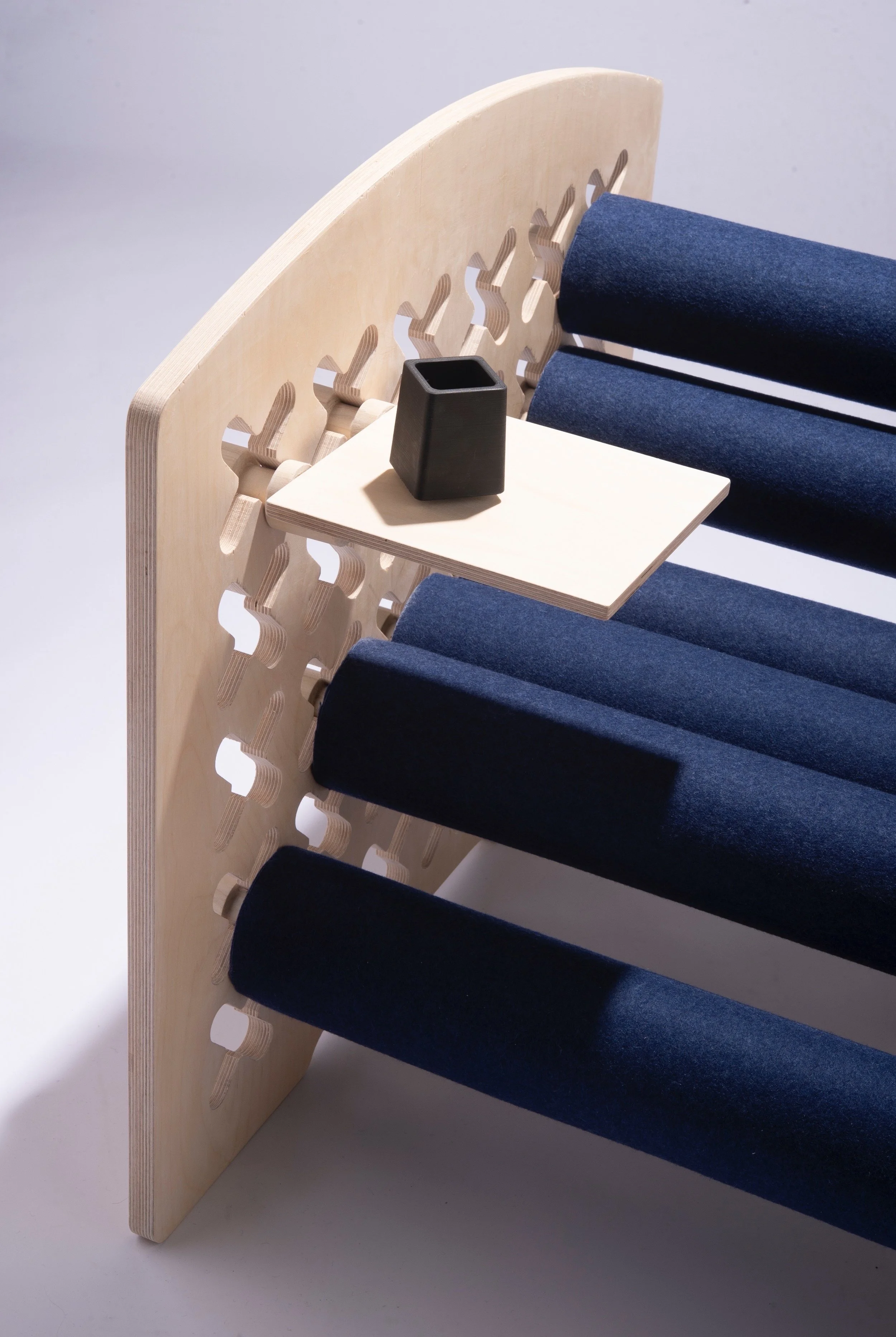

-Attachable accessories expand its functionality, making it suitable for various uses beyond just serving as a chair.

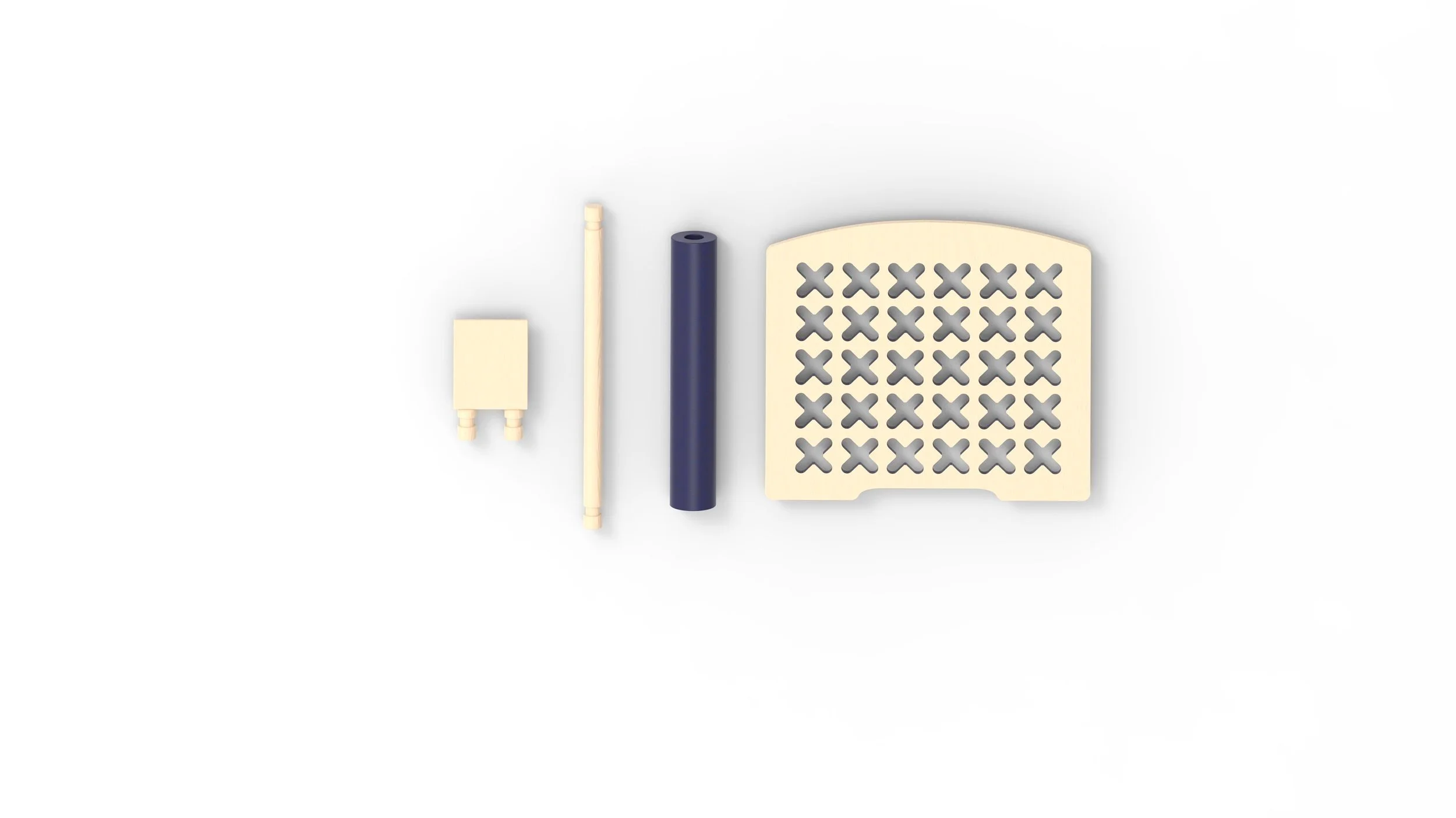

-Designed to ship flat.

The Designed Versatility

The X Chair's versatility allows it to be assembled in a wide range of configurations to suit the user's preferences, while remaining accessible to various user groups and adaptable to different environments.
